BBS U-555
Đánh giá 2 lượt đánh giá
0 VND

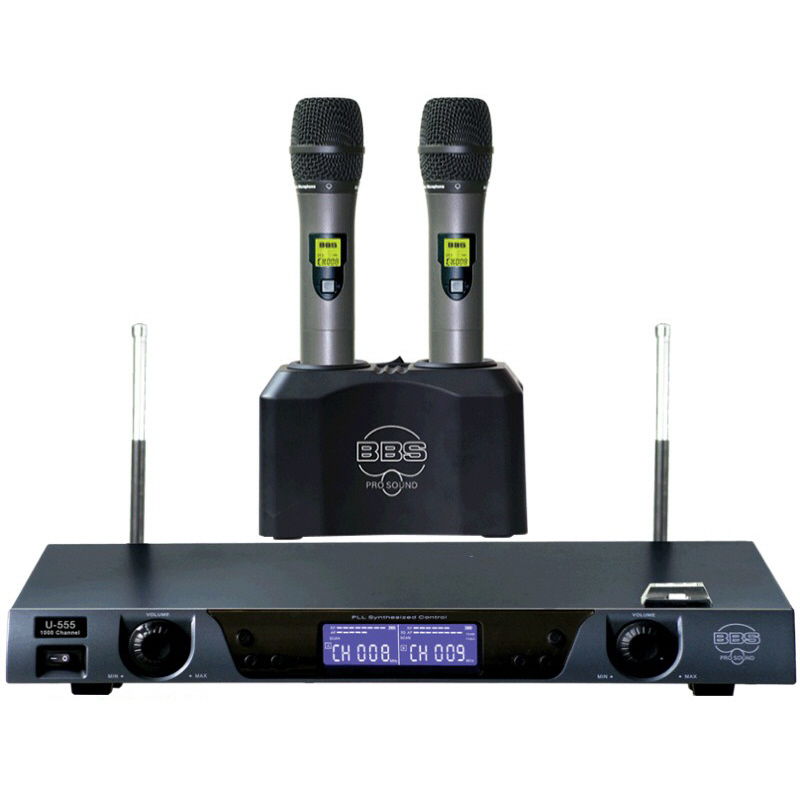

U-555 (1000CH) PLL Dual module locked loop design UHF 1000 frequency spots PLL digital lock automatic selection function Innovative blue LCD static display. Anti-interference functional control, specialized for KTV (multiple channels) Mini processor for automatic selection function, it can choose the most powerful signal from two microphones. Compared with those do not have such function, the reception ability is much higher, the working distance is lengthen, no dead points occurred, this will be effectively to avoid discontinuous sound or noises. MENU, UP, DOWN, SET etc are control function buttons. Offer balanced XLR & unbalanced TRS ¢6.3 mm output socket.
Sản phẩm hàng chính hãng được nhập khẩu và phân phối bởi Pro Asia Electronics - www.bbsprosound.vn
Đặt hàng Online (8:00 - 21:00): 091 550 8880 - 0995 666 555
BBS U-555
Wireless Receiver
Carrier Wave Frequency range 640.000 - 690.000MHz
Frequency Oscillation Mode PLL module locked loop design
Channels 1000CH
Frequency Responses 50Hz---18KHz
Working distance 200 feet
Band Width 24MHz
Carrier Wave stability ±5PPm ≤ 10KHz
Image Interference Ratio >80dB
S/N Ratio >105dB(1KHz-A)
Sensitivity -105dBm(12dB S/N AD)
T.H.D. (1KHz) < 0.5%@1kHz
AF Output Impedance 2.2kΩ
Audio Output Level -12dB
Mute Mute & locked loop circuit
Display LCD
Operations Voltage 12-18v Dc, 600mA
Output Connector 1 XLR Balanced Socket
Unbalance TRS6.3mm Socket

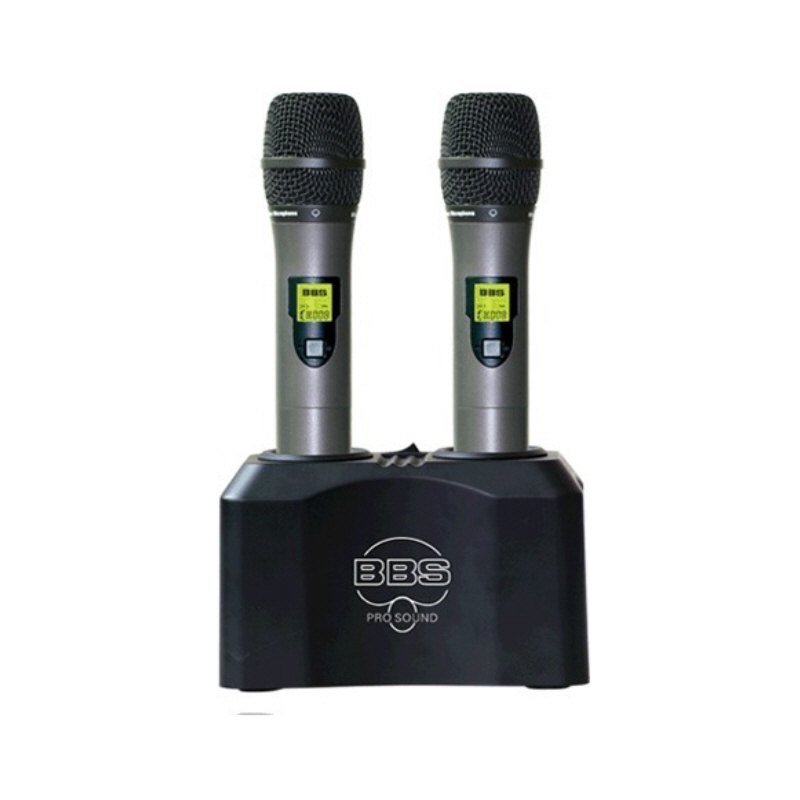

Handheld Wireless
Dynamic Range >110dB
Stability ±0.005%
Frequency Deviation ±48KHz
Spurious Emissions <-60dBc
Radio Frequency Output Power 10mW
Power Consumed ≤100mA @ 3 V
Battery ″UM3, AAA 1.5v×2 ″
Display LCD
Sản phẩm hàng chính hãng được nhập khẩu và phân phối bởi Pro Asia Electronics
Thông số kỹ thuật BBS U-555
Wireless Receiver
Carrier Wave Frequency range 640.000 - 690.000MHz
Frequency Oscillation Mode PLL module locked loop design
Channels 1000CH
Frequency Responses 50Hz---18KHz
Working distance 200 feet
Band Width 24MHz
Carrier Wave stability ±5PPm ≤ 10KHz
Image Interference Ratio >80dB
S/N Ratio >105dB(1KHz-A)
Sensitivity -105dBm(12dB S/N AD)
T.H.D. (1KHz) < 0.5%@1kHz
AF Output Impedance 2.2kΩ
Audio Output Level -12dB
Mute Mute & locked loop circuit
Display LCD
Operations Voltage 12-18v Dc, 600mA
Output Connector 1 XLR Balanced Socket
Unbalance TRS6.3mm Socket
Handheld Wireless
Dynamic Range >110dB
Stability ±0.005%
Frequency Deviation ±48KHz
Spurious Emissions <-60dBc
Radio Frequency Output Power 10mW
Power Consumed ≤100mA @ 3 V
Battery ″UM3, AAA 1.5v×2 ″
Display LCD
Sản phẩm hàng chính hãng được nhập khẩu và phân phối bởi Pro Asia Electronics
