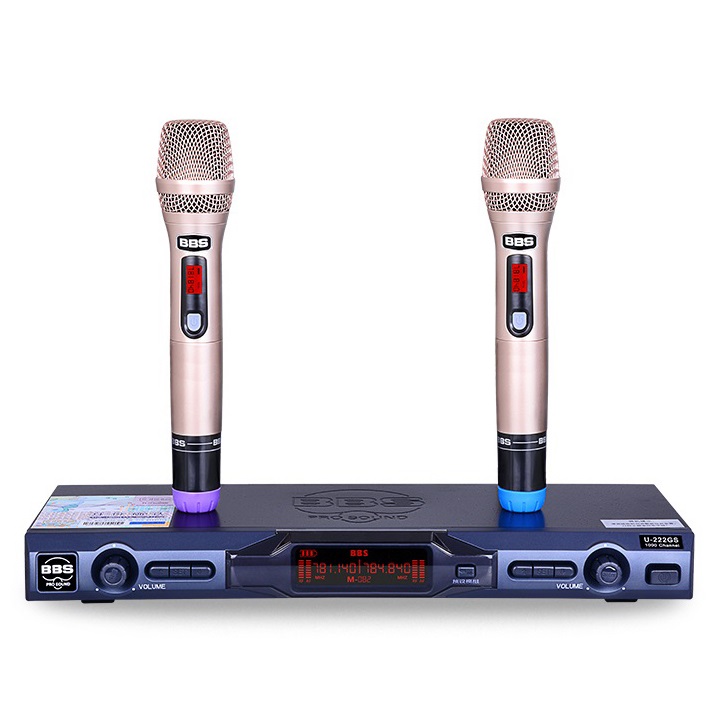

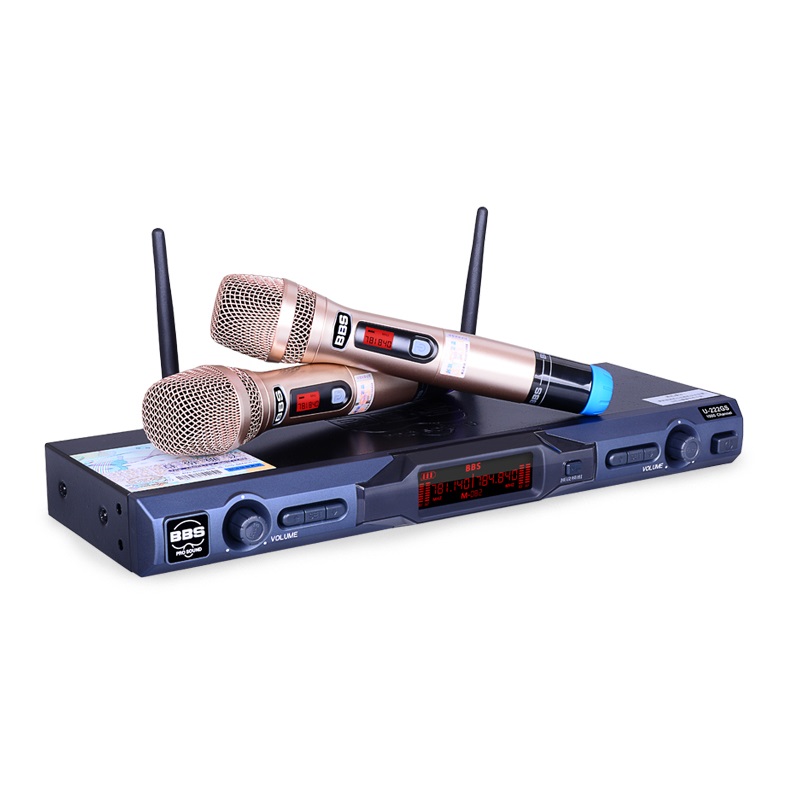

BBS U-222 GS
Wireless Receiver
selectable frequency range 630MHz - 690MHz
selectable frequency range of 40MHz bandwidth,
number of channels 1000CH adjustable
frequency tunable channel spacing 40 KHz
optional number of modules 159 Module
Frequency Oscillation Mode PLL phase-locked frequency synthesizer
practical sensitivity input 6dBuV - 10dBuV time, S / N> 80dB
Frequency Stability ± 0.005% (-10 ℃ ~ 50 ℃)
Maximum deviation ± 3KHz
signal to noise ratio> 105dB (1KHz-A)
Comprehensive THD <0.5% @ 1KHz
Maximum Output Voltage 12dBV ~ 15dBv
Audio output impedance 2.2KΩ
audio output interface Unbalance TRS 6.3mm Socket
Receive mode selection information + CPU control pilot received recognition
Mute Mute & Lock Loop Circuit
Display LCD + LED
Power Supply 12V DC - 1.25A
Dimensions ( MM) 420 (W) X 44 (height) X 138 (depth)
Weight (Kg) 1.35

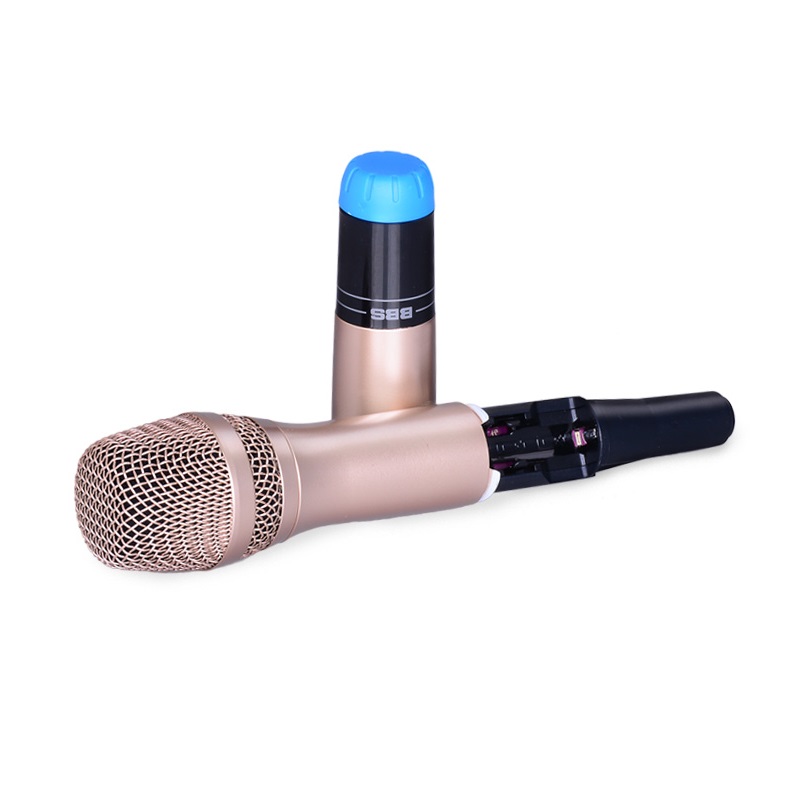

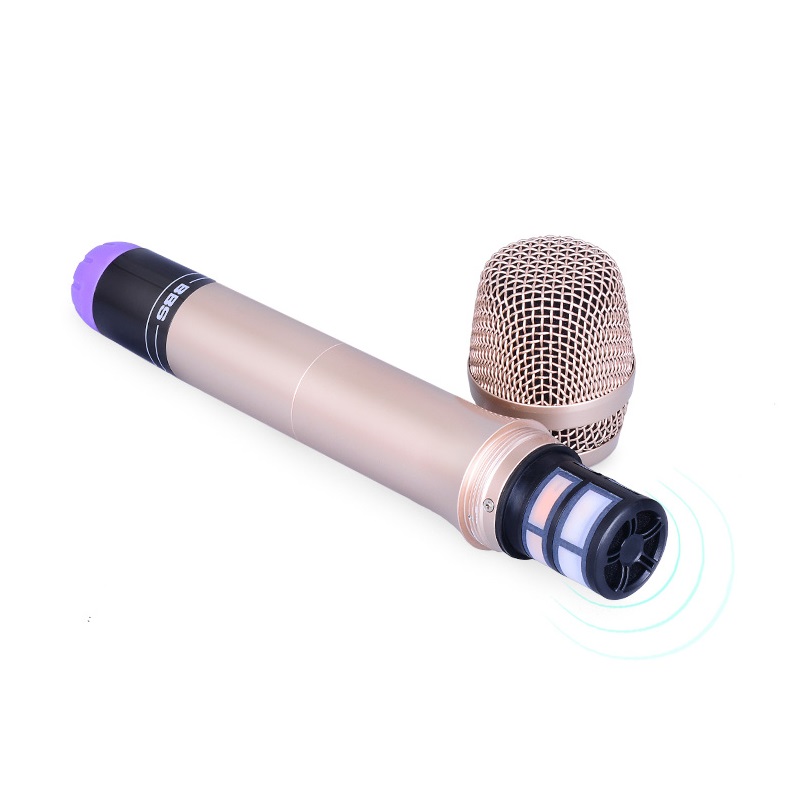

Handheld Transmitter
selectable frequency range 630MHz - 690MHz
selectable frequency range of 40MHz bandwidth,
number of channels 1000CH adjustable
frequency tunable channel spacing 40KHz
Frequency Response 50Hz ~ 18KHz
Frequency Oscillation Mode PLL frequency synthesizer phase-locked
transmit mode CPU control carrier generation + pilot identification code generator
output power ≦ 50mW
Harmonic Radiation <-60dBc
Max Deviation ± 3KHz
maximum output sound pressure 140dB SPL
Display LCD + multi-color backlit screen with
optional sound head moving coil (OK-40 +40 A, OK -40 +40 B, OK-40 + X40-2900)
Battery NiMH rechargeable batteries two
dimensions (MM)
Weight (g) 298
Thông số kỹ thuật BBS U-222 GS
BBS U-222 GS
Wireless Receiver
selectable frequency range 630MHz - 690MHz
selectable frequency range of 40MHz bandwidth,
number of channels 1000CH adjustable
frequency tunable channel spacing 40 KHz
optional number of modules 159 Module
Frequency Oscillation Mode PLL phase-locked frequency synthesizer
practical sensitivity input 6dBuV - 10dBuV time, S / N> 80dB
Frequency Stability ± 0.005% (-10 ℃ ~ 50 ℃)
Maximum deviation ± 3KHz
signal to noise ratio> 105dB (1KHz-A)
Comprehensive THD <0.5% @ 1KHz
Maximum Output Voltage 12dBV ~ 15dBv
Audio output impedance 2.2KΩ
audio output interface Unbalance TRS 6.3mm Socket
Receive mode selection information + CPU control pilot received recognition
Mute Mute & Lock Loop Circuit
Display LCD + LED
Power Supply 12V DC - 1.25A
Dimensions ( MM) 420 (W) X 44 (height) X 138 (depth)
Weight (Kg) 1.35
Handheld Transmitter
selectable frequency range 630MHz - 690MHz
selectable frequency range of 40MHz bandwidth,
number of channels 1000CH adjustable
frequency tunable channel spacing 40KHz
Frequency Response 50Hz ~ 18KHz
Frequency Oscillation Mode PLL frequency synthesizer phase-locked
transmit mode CPU control carrier generation + pilot identification code generator
output power ≦ 50mW
Harmonic Radiation <-60dBc
Max Deviation ± 3KHz
maximum output sound pressure 140dB SPL
Display LCD + multi-color backlit screen with
optional sound head moving coil (OK-40 +40 A, OK -40 +40 B, OK-40 + X40-2900)
Battery NiMH rechargeable batteries two
dimensions (MM)
Weight (g) 298
