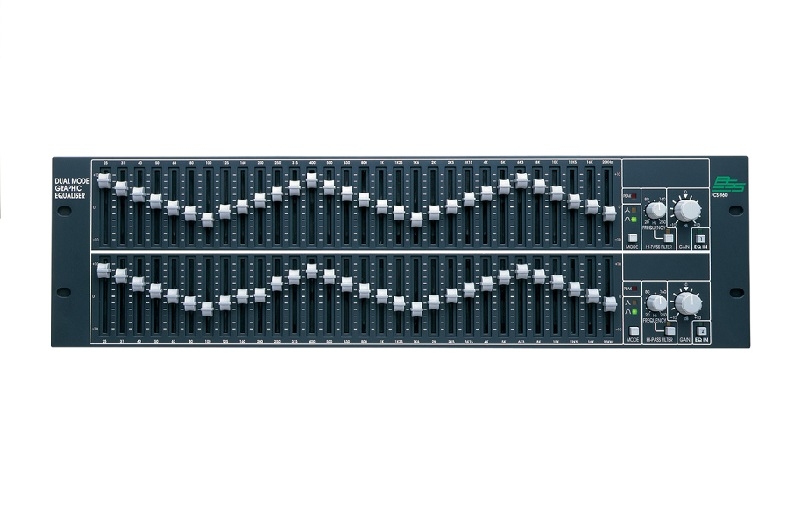

The FCS-960 is a 30-band graphic equaliser featuring Dual Mode switching between Normal and Fine filter width settings on each channel.
The FCS-960 provides two channels in 3U of rack space. Constant Q-filters with filter-bypass centre taps are controlled by high grade, 45mm faders with moulded polymer fader knobs which eliminate visual parallax error even under low light conditions.
Also included are sweepable/switchable Hi-pass filter, Gain control and electronic balanced inputs and outputs.
Tính năng:
Chassis | 3U rack spaces |
Input Connectors | XLR (2) |
Output Connectors | XLR (2) |
EQ Bands | 30 per channel (60 total) |
Filter Width (Q) | Constant-Q |
EQ Gain | - inf to +10dB |
Metering | +18dBu Peak Indicator (LED) |
Bypass Switch |
