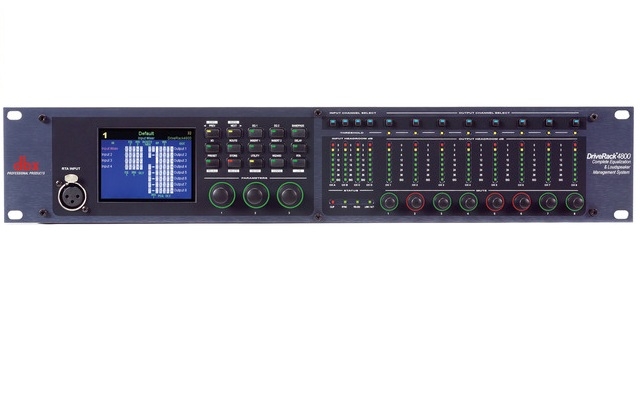

| Input |
(4) total |
| Input Connectors |
Female XLR |
| Input Type |
Electronically balanced, RF filtered |
| Insert Impedance |
>50k ohm |
| Max Input |
Software selectable for: +28, +26, +24, +22, +20, +18, +16, +14 dBu |
| CMRR |
>40 dB typical, >55 dB at 1 kHz |
| Digital Inputs |
(4) AES/EBU Channels |
| Digital Input Connectors |
Female XLR |
| Digital Input Type |
Transformer Isolated, RF filtered |
| Digital Input Impedance |
>110 ohms |
| Mic Preamp Connector |
(RTA) - (1) Female XLR |
| Mic Preamp gain |
(RTA) 10dB to 50dB in 10dB increments |
| Output |
8 total |
| Output Connectors |
Male XLR |
| Output Type |
Electronically balanced, RF filtered |
| Output Impedance |
30 ohms |
| Max Output |
Software selectable for: +24, +22, +20, +12, +8, +4 dBu |
| Digital Output |
(8) AES/EBU Channels |
| Digital Output Connector |
Male XLR |
| Digital Output Type |
Transformer Isolated, RF filtered |
| Digital Output Impedance |
>110 ohms |
| A/D Converter |
dbx Typve IV™ Converstion System |
| A/D Dynamic Range |
>114 dB unweighted, 116dB A-weighted |
| Type IV Dynamic Range |
128dB with transient material, A-weighted, 22kHz BW 126 dB with transient material, unweighted, 22 kHz BW 120 dB typical with program material, A-weighted, 22 kHz BW |
| Sample Rate |
96kHz |
| Wordlength |
24 bits |
| D/A Dynamic Range |
112 dB unweighted, 115 dB A-weighted |
| Dynamic Range |
112dB unweighted, 115dB A-weighted |
| Internal Processing |
32 bit floating point |
| THD+Noise |
0.004% typical at +4 dBu, 1 kHz, 0 dB input gain |
| Frequency Response |
20 Hz- 40 kHz, +/-0.5 dB |
| Interchannel Crosstalk |
<-85 dB at 1 kHz, 0 dB input gain |
| Pre EQ Type |
One 31-band Graphic EQ on each input One EQ that is switchable between 31-band and 9-band Parametric on each input |
| EQ Gain |
+/- 12dB |
| Input Insert Processing |
Two selectable Insert Processing blocks per input: Noise Gate, Compressor, Auto Gain Control, De-Esser, Sub-Harmonic Synth, Advanced Feedback Suppression |
| Input Delay Length |
Up to 682 mSec available |
| Routing/Mixing |
4-input mixer available at each output allowing any input to be sent or mixed to any output |
| Output Insert Processing |
Two selectable Insert Processing blocks per output: Noise Gate, AutoWarmth®, Compressor, Auto Gain Control, Peak Limiter, Sub-Harmonic Synth, Advanced Feedback Suppression |
| Crossover |
configs: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 1x7, 1x8, 2x2, 2x3, 2x4 2x5, 2x6, 2x7, 2x8, 3x3, 3x4, 3x6, 3x7, 4x4, 4x5, 4x8 |
| Crossover Filter Type |
Bessel 6, 12, 18, and 24 dB per Octave Butterworth 6, 12, 18, and 24 dB per Octave Linkwitz-Riley 12, 24, 36, and 48 dB per Octave |
| Polarity |
Positive and Negative |
| Phase Control |
0 to -180 degrees in 5 degree increments |
| Output Delay Length |
1365 mSec shared between the outputs |
| Transformer |
I/O: optional |
| Controls |
Ethernet, RS-232, Optional dbx ZC Wall Panels |
| Power Consumption |
100V to 240V 50/60Hz, 45 Watts |
| Dimensions |
3.5"x19"x12.15" |
| Unit Weight |
11 lbs. |
| Shipping Weight |
12.5 lbs. |
