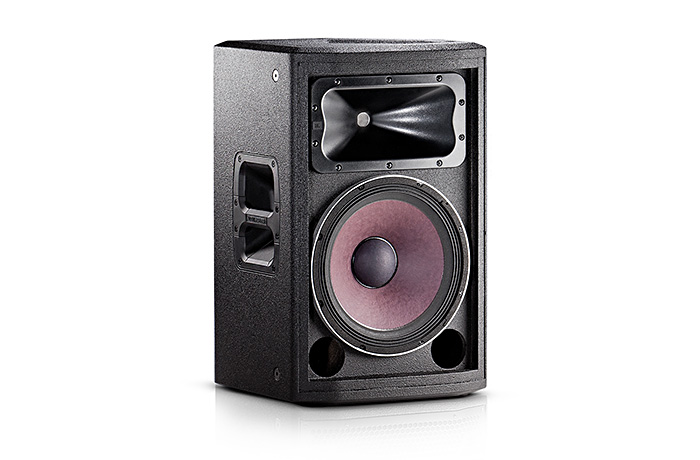

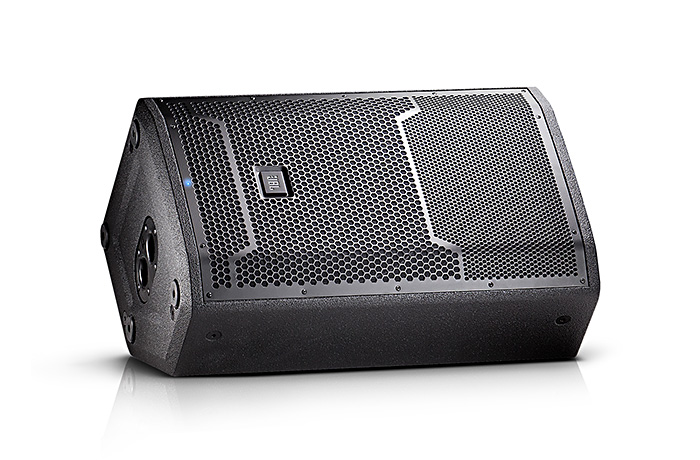

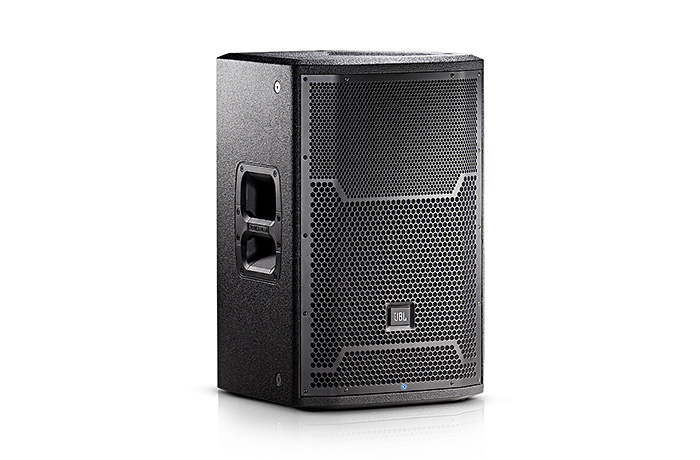

JBL PRX712
Đánh giá 1 lượt đánh giá
0 VND
Đặt hàng Online (8:00 - 21:00): 091 550 8880 - 0995 666 555
Thông số kỹ thuật JBL PRX712
Power Rating | 1500 W | |
AC Power Input | 100V - 240V~ 50/60 Hz | |
Frequency Range (-10 dB) | Main: 44.8 Hz – 19.6 kHz Monitor: 44.8 Hz – 19.5 kHz |
|
Frequency Response (±3 dB) | Main: 55.7 Hz – 18.2 kHz Monitor: 56.5 Hz – 17.7 kHz |
|
Coverage Pattern | 90° x 50° nominal | |
Directivity Index (DI) | 10.2 dB | |
Directivity Factor (Q) | 10.4 | |
Crossover Frequency | 1.8 kHz | |
Maximum SPL | Normal: 135 dB Boost: 135 dB |
|
Signal Indicators | Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio. |
|
Dynamic Control (Input) | dbx Type IV™ limiter circuit | |
Input Impedance | 20K Ohms (balanced), 10K Ohms (unbalanced) | |
LF Driver | 1 x JBL 272G 305mm (12 in) woofer | |
HF Driver | 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver | |
Enclosure | Asymmetrical, 18 mm, plywood | |
Suspension / Mounting | Dual 36 mm pole socket, 12 x M10 Suspension Points | |
Transport | 1 x injection molded handles with backing cup | |
Finish | Obsidian DuraFlex™ finish | |
Grille | Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. | |
Input Connectors | 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input | |
Output Connectors | 1 male XLR balanced output | |
Dimensions (H x W x D) | 612.394 mm x 384.556 mm x 341.376 mm (24.11 in x 15.14 in x 13.44 in) |
|
Net Weight | 19.4 kg (42.5 lb.) |
